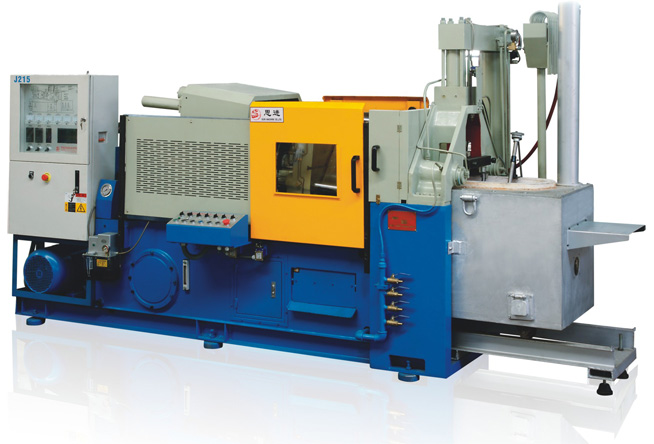

HJ58

STANDARD FEATURES

  • Programmable Controller
  • Low Clamping protection mode
  • Proportion Speed & Pressure Control for Die Closing & Opening
  • Import Brand Diesel Burner
  • Two Phase Injection Control
  • Hydraulic Multi Ejection
  • Hydraulic Nozzle Disenagement
  • LCD Display Touch Screen
  • Gear Type Die Height Adjustments

CONFIGURTION TABLE

Core pulling device indicates standard
Pneumatic Heading indicates optional
Automatic spray indicates optional
Furnace Standard electric furnace(optional natural gas furnace, coke ovens ,diesel furnace)
Hydraulic Platform indicates optional
Valve Made in china or Taiwan
PLC Omron
Touch screen Made in china or Taiwan

TECHNICAL DATA SHEET

Die locking force

580 KN

Platen size(H*V)

480 × 480 MM

Space between tie bars

310 ×310 MM

Tie bar diameter

Φ 56 MM

Die thickness(Min-Max)

120-340 MM

Locking stroke

230 MM

Ejection stroke

60 MM

Ejection force

50 KN

Injection force

65 KN

Injection position

0

Plunger diameter

50 MM

Injection weight （ Zn ）

1.1 KG

Injecting pressure

33.1 Mpa

Injection stroke

130 MM

Disengage

192 MM

System working pressure

10.5 MPA

Crucible capacity

250 KG(Zn)

Motor power

11 KW

Nozzle heating power

4.4 KW

Furnace

Fuel

4.8 KG/H

Electricity

26 KW

Oil tank capacity

260 L

Machine weight

3500 KG

Machine dimensions(L*W*H)

4.0×1.45×1.88M

Mold Size
