Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

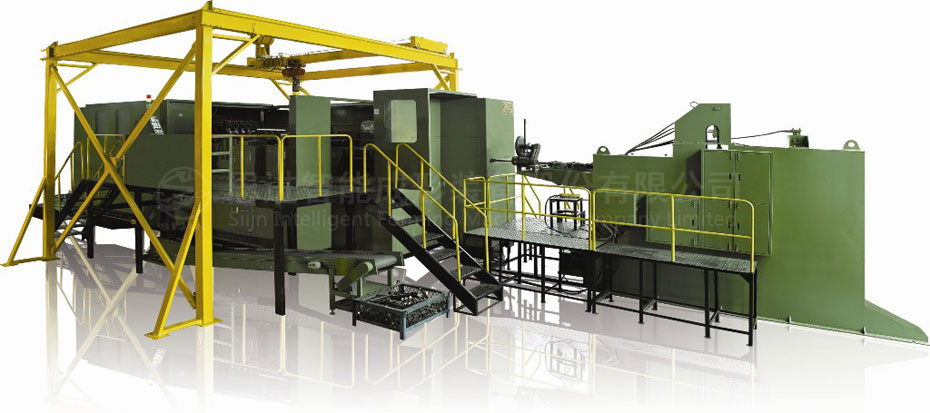

SJBF-134LL

Forging station	4 NO.
Forging force	120,000 KGS
Max cut-off dia.	Φ15 MM
Max cut-off length	285 MM
Speed range	50-80 PCS/MIN
P.K.O Stroke	30 MM
K.O.Stroke	280 MM
Main slide stroke	380 MM
Main motor	37 KW
Cut-off-die size	Φ55* 70L MM
Punch die size	Φ60* 229L MM
Main die size	Φ86* 305L MM
Die pitch	110 MM
*Machine dimension(LWH)*	710310260 CM
Machine weight(Approx)	38,000 KGS
Normal bolt size	8-12.7 MM
Shank length of blank	75-262 MM
