Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

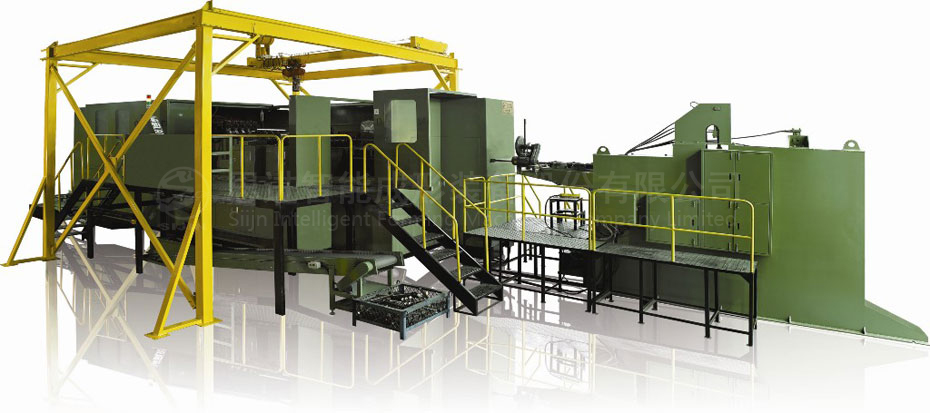

SJBF-164LL

Forging station	4 NO.
Forging force	210,000 KGS
Max cut-off dia.	Φ18 MM
Max cut-off length	350 MM
Speed range	40-70 PCS/MIN
P.K.O Stroke	46 MM
K.O.Stroke	320 MM
Main slide stroke	490 MM
Main motor	55 KW
Cut-off-die size	Φ64* 100L MM
Punch die size	Φ75* 185L MM
Main die size	Φ100* 345L MM
Die pitch	120 MM
*Machine dimension(LWH)*	870320300 CM
Machine weight(Approx)	60,000 KGS
Normal bolt size	10-16 MM
Shank length of blank	100-305 MM
