Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

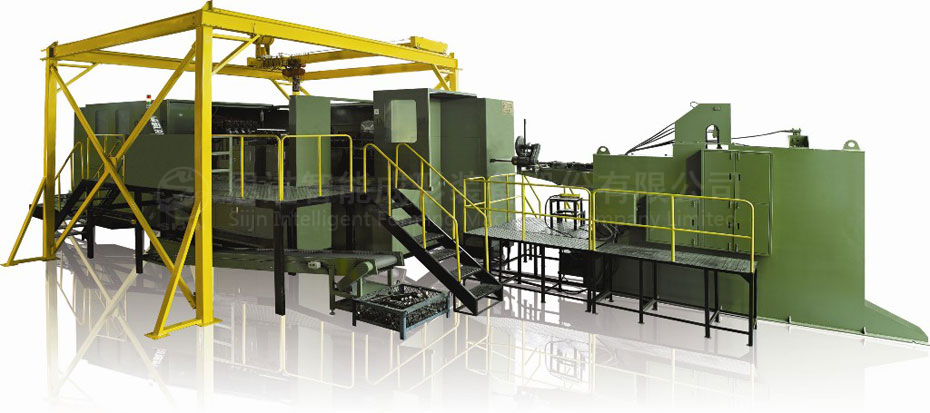

SJBF-254SL

Forging station	4 NO.
Forging force	430,000 KGS
Max cut-off dia.	Φ26 MM
Max cut-off length	253 MM
Speed range	40-70 PCS/MIN
P.K.O Stroke	40 MM
K.O.Stroke	210 MM
Main slide stroke	330 MM
Main motor	110 KW
Cut-off-die size	Φ80* 130L MM
Punch die size	Φ120* 270L MM
Main die size	Φ140* 250L MM
Die pitch	160 MM
*Machine dimension(LWH)*	830430330 CM
Machine weight(Approx)	105,000 KGS
Normal bolt size	14-25.4 MM
Shank length of blank	35-210 MM
