Home >> Products >> One Die Two Blow Forging Machine >> One die two blow cold forging machine >> All

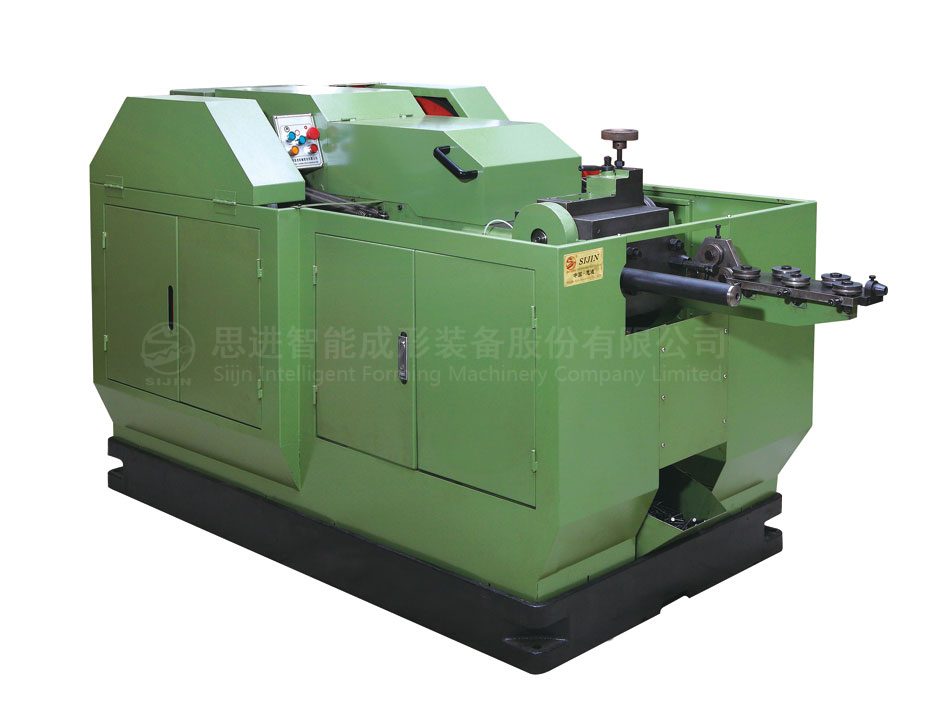

SJH04-32

Max makable dia	4mm
Max makable length	5-32mm
Max cut-off length	47mm
Slide stroke	58mm
Speed range	170-200 PCS/min
Main die size	φ30×45Lmm
Rough punch size	φ25*54Lmm
Fine punch size	φ25×54Lmm
Cut-off-die size	φ15x30Lmm
Cutter size	83060mm
Main motor	1.5(2HP-4P-380V)kw
Oil pump	180w(1/4HP)
Net weight	900kgs
Volume	170010901100mm
