Home >> Products >> One Die Two Blow Forging Machine >> One die two blow cold forging machine >> All

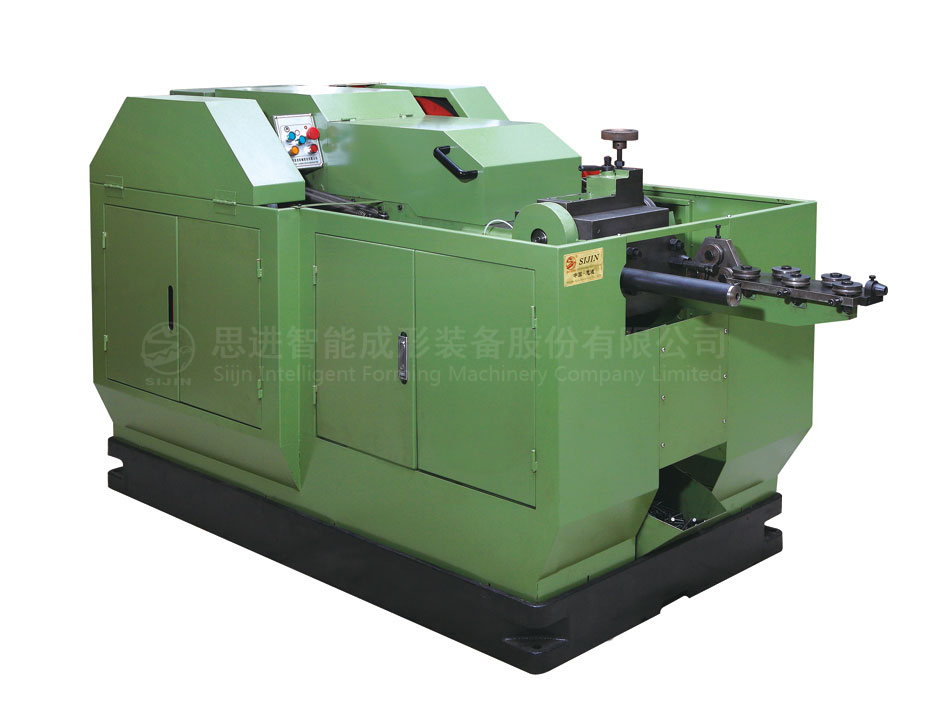

SJH08-80

Max makable dia	8mm
Max makable length	12-80mm
Max cut-off length	125mm
Slide stroke	140mm
Speed range	70-90 PCS/min
Main die size	Φ55*98Lmm
Rough punch size	Φ38*113L mm
Fine punch size	Φ38*113L mm
Cut-off-die size	Φ32*40Lmm
Cutter size	144098mm
Main motor	7.5(10HP-6P-380V)kw
Oil pump	180w(1/4HP)
Net weight	3750kgs
Volume	307012501350mm
