Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

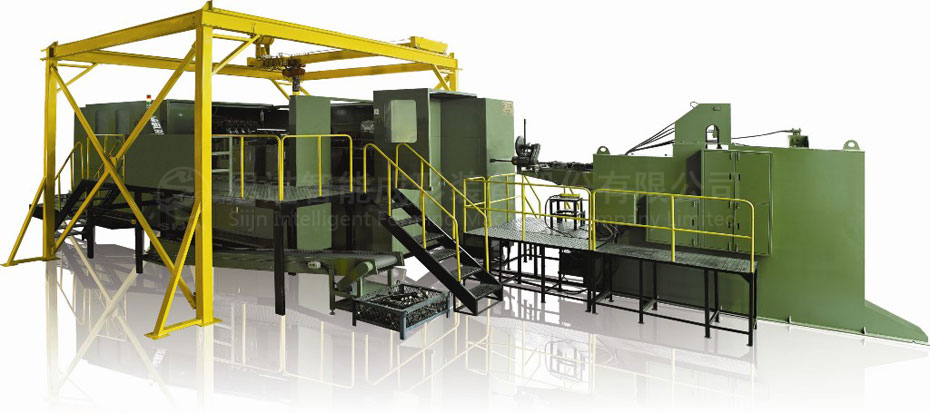

SJBF-384L

Forging station	4 NO.
Forging force	800,000 KGS
Max cut-off dia.	Ф42 MM
Max cut-off length	450 MM
Speed range	30-50 PCS/MIN
P.K.O stroke	60 MM
K.O.Stroke	380 MM
Main slide stroke	570 MM
Main moto	200 KW
Cut-off-die size	Ф120*150L MM
Punch die size	Ф145*320L MM
Main die size	Ф190*450L MM
Die pitch	216 MM
Machine dimension(LWH)	1100520400 CM
Machine weight(Approx)	260,000 KGS
Normal bolt size	20-40 MM
Shank length of blank	70-370 MM
