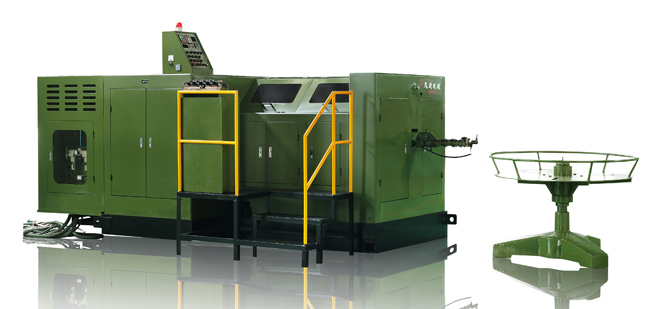

SJBF-84L

Forging station	4 NO.
Forging force	70,000 KGS
Max cut-off dia.	��10 MM
Max cut-off length	200 MM
Speed range	65-135 PCS/MIN
P.K.O Stroke	26 MM
K.O.Stroke	170 MM
Main slide stroke	270 MM
Main motor	22 KW
Cut-off-die size	��35* 59L MM
Punch die size	��45* 115L MM
Main die size	��60* 190L MM
Die pitch	80 MM
*Machine dimension(LWH)*	560240200 CM
Machine weight(Approx)	19,000 KGS
Normal bolt size	5-8 MM
Shank length of blank	25-160 MM
