Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

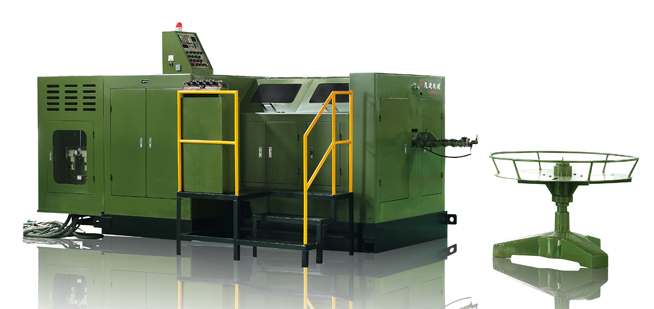

SJBF-134UL

Forging station	4 NO.
Forging force	140,000 KGS
Max cut-off dia.	��16 MM
Max cut-off length	450 MM
Speed range	32-65 PCS/MIN
P.K.O Stroke	50 MM
K.O.Stroke	420 MM
Main slide stroke	580 MM
Main motor	45 KW
Cut-off-die size	��58* 80L MM
Punch die size	��60* 229L MM
Main die size	��86* 450L MM
Die pitch	110 MM
*Machine dimension(LWH)*	800350300 CM
Machine weight(Approx)	45,000 KGS
Normal bolt size	8-14 MM
Shank length of blank	120-400 MM
