Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

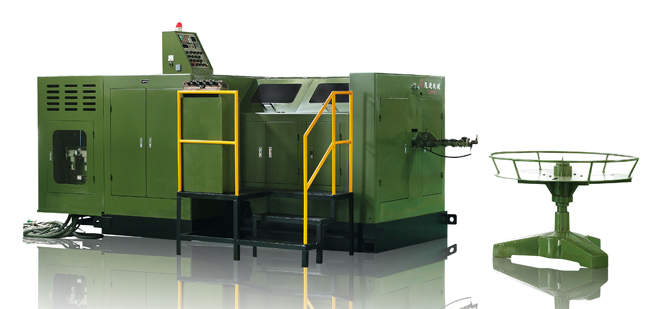

SJBF-304L

Forging station	4 NO.
Forging force	600,000 KGS
Max cut-off dia.	36 MM
Max cut-off length	400 MM
Speed range	35-53 PCS/MIN
P.K.O Stroke	50 MM
K.O.Stroke	330 MM
Main slide stroke	520 MM
Main motor	132 KW
Cut-off-die size	118* 180L MM
Punch die size	140* 270L MM
Main die size	185* 355L MM
Die pitch	200 MM
*Machine dimension(LWH)*	1000470460 CM
Machine weight(Approx)	170,000 KGS
Normal bolt size	24-30 MM
Shank length of blank	60-320 MM
