Home >> Products >> Bolt Former >> 4-Station Cold Forging Machine >> All

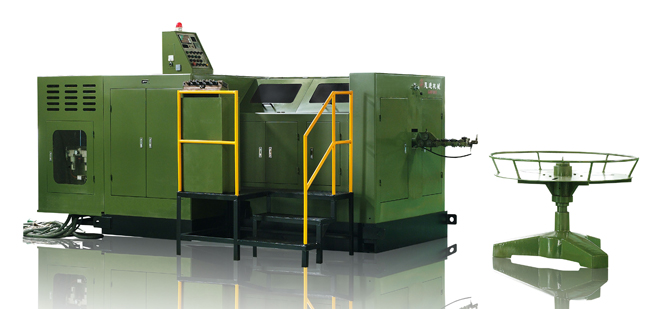

SJBF-304LL

Forging station	4 NO.
Forging force	600,000 KGS
Max cut-off dia.	36 MM
Max cut-off length	450 MM
Speed range	25-50 PCS/MIN
P.K.O Stroke	60 MM
K.O.Stroke	420 MM
Main slide stroke	620 MM
Main motor	132 KW
Cut-off-die size	118* 180L MM
Punch die size	140* 300L MM
Main die size	185* 460L MM
Die pitch	200 MM
*Machine dimension(LWH)*	1100480400 CM
Machine weight(Approx)	200,000 KGS
Normal bolt size	24-30 MM
Shank length of blank	70-380 MM
